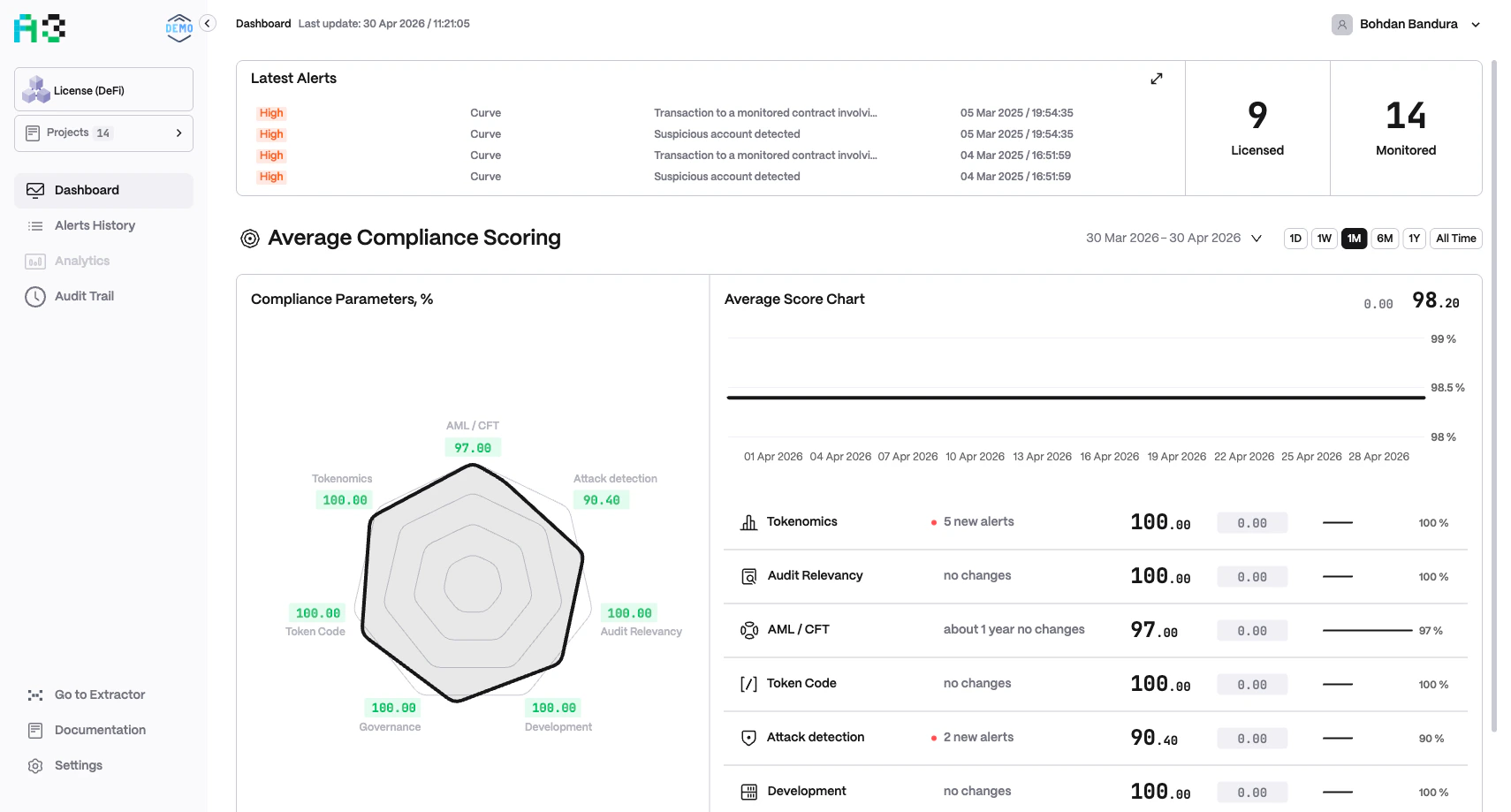

Dashboard overview showing the Average Compliance Scoring section with radar chart, score timeline, and per-category breakdown

​
Overview

The Dashboard aggregates scoring data from all projects in the currently selected portfolio. It refreshes automatically; the last refresh time is shown in the header (Last update: DD MMM YYYY / HH:MM:SS).
The Dashboard’s labels and categories are configured per organization. You may see “Average Risk Scoring” or “Average Compliance Scoring” depending on your setup. Category names and the two quick-stat labels also vary by organization.

​
Quick Stats

Two summary numbers appear at the top-right of the Latest Alerts card:
StatDescription
Active / LicensedProjects with active monitoring enabled (label varies by org)
MonitoredTotal number of projects in the current portfolio

​
Latest Alerts

The Latest Alerts card lists the four most recent alerts across all projects. Each entry shows:
  • Severity badge — INFO, LOW, MEDIUM, HIGH, or CRITICAL
  • Project name — the originating project
  • Context value — a human-readable metric snapshot (e.g. TVL values, transaction details, a price change)
  • Timestamp — date and time the alert fired
Click the expand icon (↗) in the card header to open the full Alerts History view.

​
Scoring Section

This section gives a portfolio-level snapshot across all configured categories. Use the time-range selector (1D / 1W / 1M / 6M / 1Y / All Time) to control the period shown.

​
Risk / Compliance Parameters Chart

A radar chart (hexagonal or multi-axis polygon) plots the current score (0–100) for each configured category. Each axis represents one category. The shape of the polygon indicates overall health — a full outer polygon means all categories score 100. Scores are color-coded:
  • Green — healthy (near 100)
  • Orange / Yellow — moderate risk
  • Red — elevated risk (near 0)
The number of axes and their names depend entirely on your organization’s configuration. Examples:
Configuration typeSample axes
Standard DeFi riskAML/CFT · Financial Anomaly · Governance · Operational Security · Sentiment · Web3 Security
Regulatory complianceAML/CFT · Tokenomics · Attack detection · Audit Relevancy · Development · Governance
Per-asset monitoringBTC · ETH · SOL · USDT · stETH · LINK · Security · Compliance · Financial · Policy

​
Average Score Chart

A time-series line chart shows how the composite average score has changed over the selected period. The current score and its delta are shown in the top-right corner (e.g. ▼ 2.50 64.33).

​
Per-Category Breakdown

Below the charts, each category is listed as a row containing:
  • Icon and name
  • Alert count — e.g. 452 new alerts or no changes
  • Current score — e.g. 42.00
  • Score delta — change badge (red = score dropped)
  • Trend sparkline — mini chart showing score history
  • Percentage bar — score on a 0–100% scale
